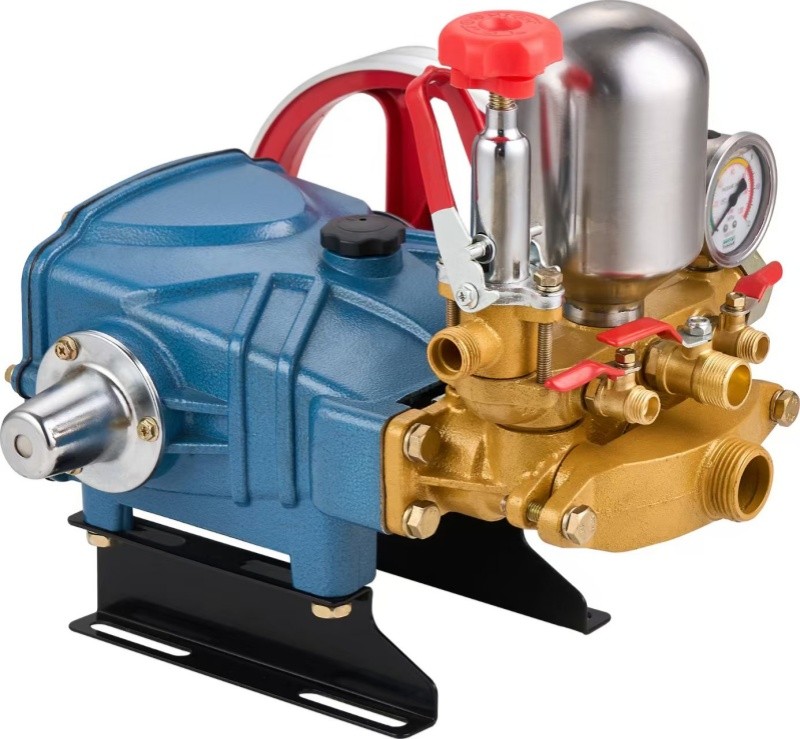

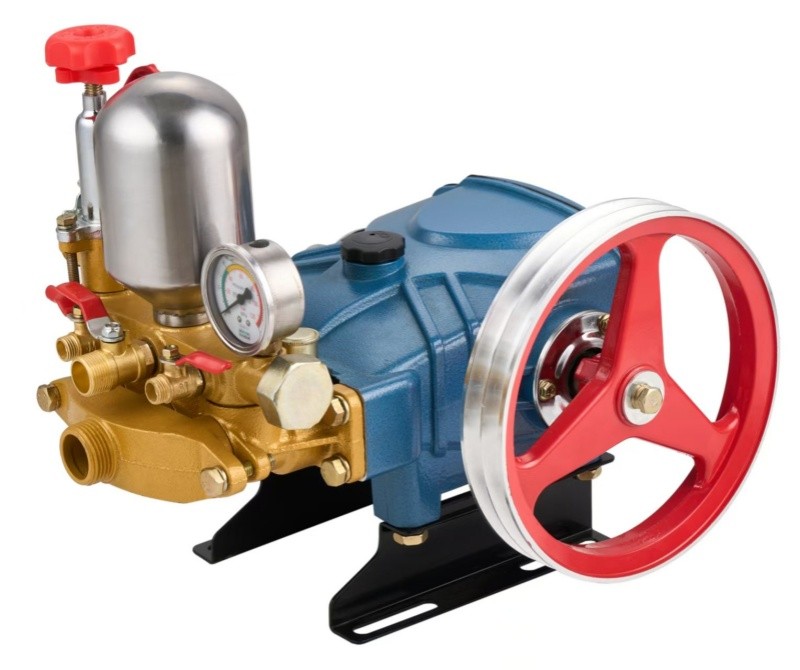

YH-60W

Characteristic

The rod is tensile and wear resistant and has good toughness; The pump shell and four large parts are all processed by cnc (precision work center); The exterior design conforms to the principles of mechanics, the structure is stable, and the unique streamlined curves are aesthetically pleasing. Main components are carefully manufactured and quality guaranteed; The heavy construction allows the piston pump to have high performance.

The five core escort for you

Performance is stable

The pressure can be adjusted

Multiple uses of a single machine

Long lasting.

Extra longevity

Detailed parameters

Model

 YH-60J

YH-60JA

YH-60T

YH-60W

Plunger Dia x stroke

27x20mm

27x20mm

27x20mm

27x20mm

Suction Volume

30-40L/min

30-40L/min

30-40L/min

30-40L/min

Working Pressure

0-40kg/cm2

0-40kg/cm2

0-40kg/cm2

0-40kg/cm2

Revolution

800-1000r.p.m

800-1000r.p.m

800-1000r.p.m

800-1000r.p.m

Required power

2.2-3.8KW

2.2-3.8KW

2.2-3.8KW

2.2-3.8KW

 weight

10.5kg

11kg

10.5kg

10.5kg

Packing Dimension

375x305x335mm

375x305x335mm

375x305x335mm

375x305x335mm
